Installing the Content Module

Table of Contents

• General Description
  • Module Composition
• Installation Sequence
  • Step 1. Module Installation
    • Example
  • Step 2. Checking Module Object Loading
    • 1. Dashboard Check
    • 2. Scheduled Task Check
    • 3. Index Check
    • 4. Index Management Policy Check
    • 5. Tag Check

---

General Description

The AI Observability content module is delivered as an archive ai_observability.zip including ready knowledge objects. Installation is performed through the standard Content Management mechanism.

Module Composition

Object Type	Objects
Dashboards	8 dashboards: Infrastructure Overview, Agents, Traces, LLM Costs, Service Metrics, GPU Status, Claude Code, Codex
Scheduler Tasks	GPU Inventory
Runtime Indexes	gen_ai_traces, gen_ai_events, gen_ai_metrics, gen_ai_gpu_metrics, gen_ai_cost
Tags	Agent Telemetry, Anthropic, Claude, Codex, DCGM Exporter, GPU Metrics, Gen AI, LLM Cost, Metric, NVIDIA, OpenAI, OpenTelemetry, Trace Span
ISM Policies	Lifecycle policies for short- and long-lived gen_ai_* indexes
Reference	Reference configuration for Claude Code and Codex icons

Please note!

Settings in the indexes and policiesism directories must be adapted to the data storage and rotation requirements of a specific installation. Inventory assets, health metrics, index templates and patterns are not included in the Content — they are installed by the ai_observability_ko_maker utility.

---

Installation Sequence

Step 1. Module Installation

To install, perform the actions described in the corresponding Content Management section.

Example

1. Go to the Content Management section: (Main Menu - System Settings - Module Settings - MAIN - Content Management)
2. Select or drag the content module archive ai_observability.zip

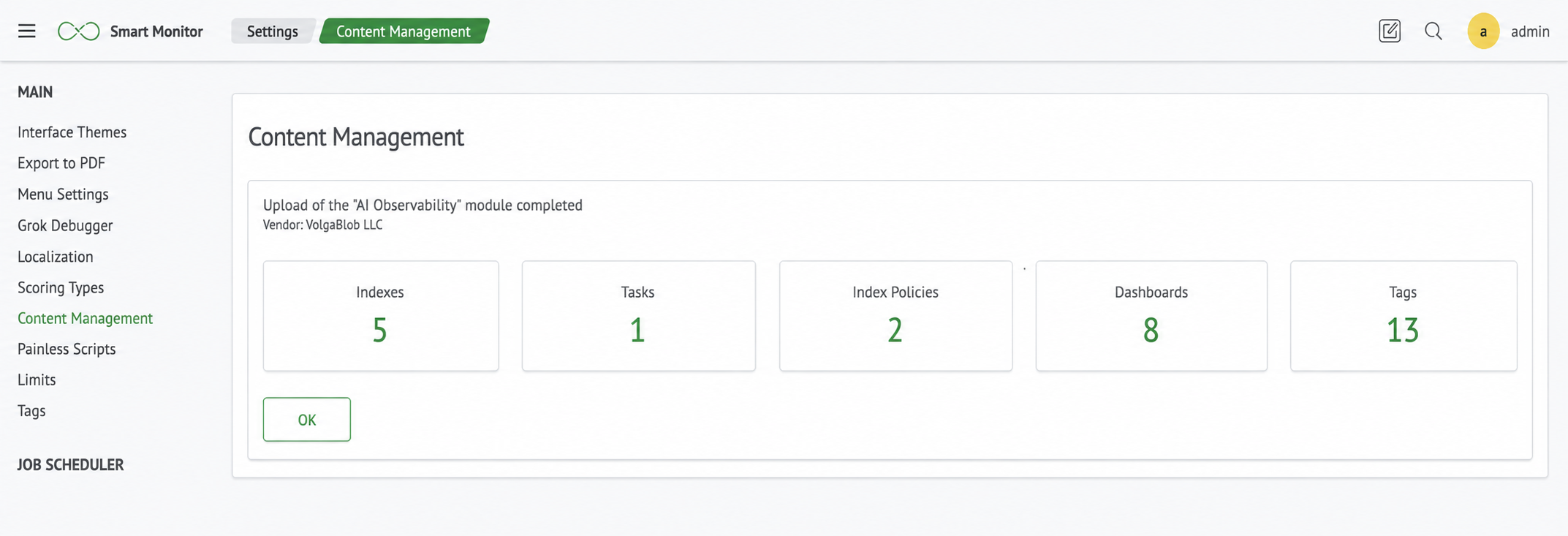

3. Confirm installation. After completion, objects will be available in the corresponding interface sections

Step 2. Checking Module Object Loading

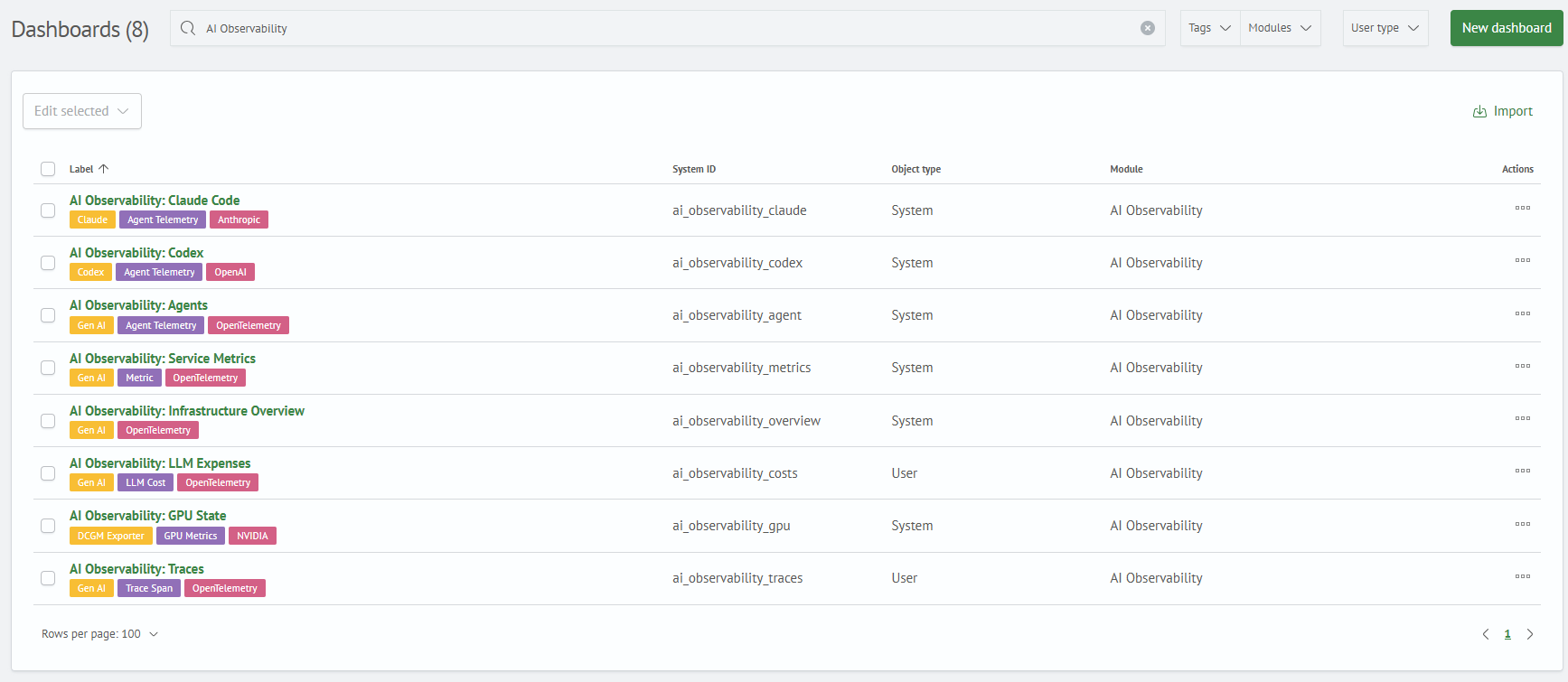

1. Dashboard Check

After loading, check for dashboard availability:

Main Menu - Main - Dashboards

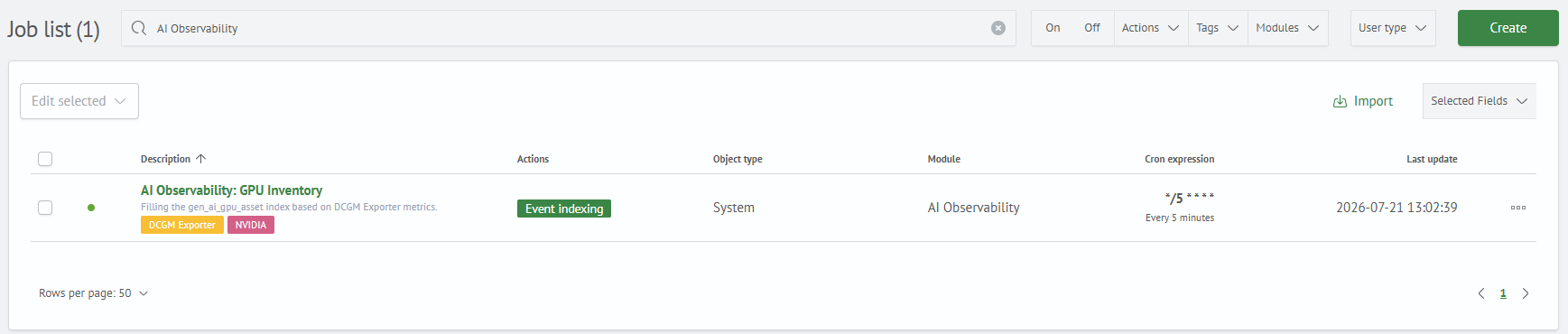

2. Scheduled Task Check

Check for the AI Observability: GPU Inventory task:

Main Menu - Task Scheduler

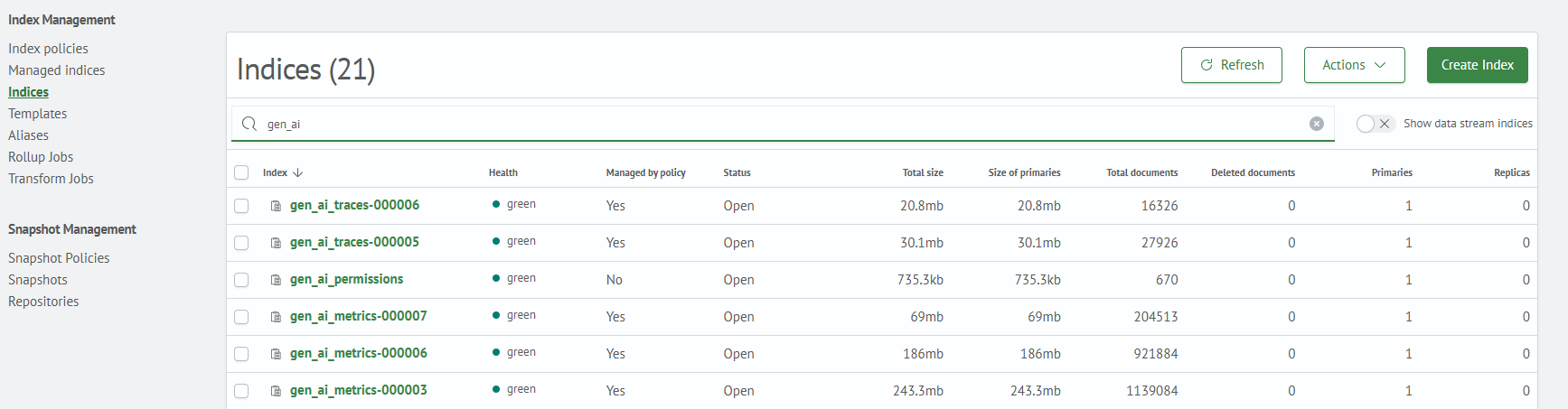

3. Index Check

Check for index availability:

Main Menu - System Settings - Index Management - Indexes

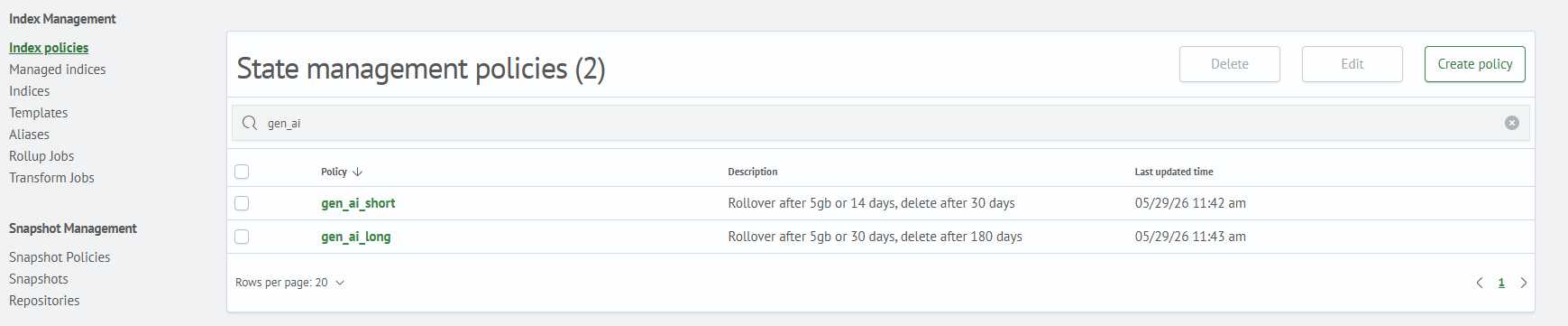

4. Index Management Policy Check

Check for ISM policies:

Main Menu - System Settings - Index Management - Index Policies

5. Tag Check

Check for tag availability:

Main Menu - System Settings - Module Settings - Tags

• Agent Telemetry
• Anthropic
• Claude
• Codex
• DCGM Exporter
• GPU Metrics
• Gen AI
• LLM Cost
• Metric
• NVIDIA
• OpenAI
• OpenTelemetry
• Trace Span
