Installing the Utility

Table of Contents

• Overview
• Installation Procedure
  • Step 0. Utility Requirements
  • Step 1. Install the Utility Dependencies
  • Step 2. Deploy the Utility Objects
  • Step 3. Verify the Deployed Utility Objects
    • 1. Index Templates
    • 2. Index Patterns
    • 3. Lookups
  • Step 4. Register the Module Incident Type
• Removing Objects

Overview

Use the ai_security_ko_maker utility to deploy AI Security module objects that are not included in the content module.

The utility installs the following objects:

Object Type	Objects
Index templates	gen_ai_events*, gen_ai_gpu_metrics*, gen_ai_permissions*
Index patterns	Patterns for the same gen_ai_* indexes
Lookups	Attack signatures and baseline values
Incident type	Incident card fields and the Security Incident incident type

Installation Procedure

Step 0. Utility Requirements

• Python 3.x
• access to the Smart Monitor cluster with administrator privileges
• network access to the frontend API on port 5601 and the OpenSearch API on port 9200

Step 1. Install the Utility Dependencies

./bin/install_dependencies.sh

Step 2. Deploy the Utility Objects

./bin/make_ai_security.py \
  --sm_host <SMART_MONITOR_HOST> \
  --sm_api_port <SMART_MONITOR_API_PORT> \
  --sm_cluster_port <OPENSEARCH_PORT> \
  --sm_user <SMART_MONITOR_USER> \
  --sm_password '<SMART_MONITOR_PASSWORD>'

Parameter	Required	Default	Description
--sm_host	Yes	-	Smart Monitor IP address or host name
--sm_api_port	No	5601	Frontend API port used for saved objects and lookup definitions
--sm_cluster_port	No	9200	OpenSearch API port used for index templates and lookup data
--sm_user	Yes	-	User name
--sm_password	Yes	-	User password

Optional parameters:

• --skip-index-templates, --skip-index-patterns, --skip-lookups - skip the corresponding object type
• --skip-lookup-data - create lookup definitions without importing data from CSV files
• --lookup-id - deploy only the specified lookup; this argument can be provided more than once
• --dry-run - show the planned operations without sending requests

Important

--sm_api_port is used for the frontend API and lookup definitions, while --sm_cluster_port is used to import index templates and lookup data. If the frontend API and OpenSearch are exposed on different hosts, specify --sm_api_host and --sm_cluster_host explicitly.

Step 3. Verify the Deployed Utility Objects

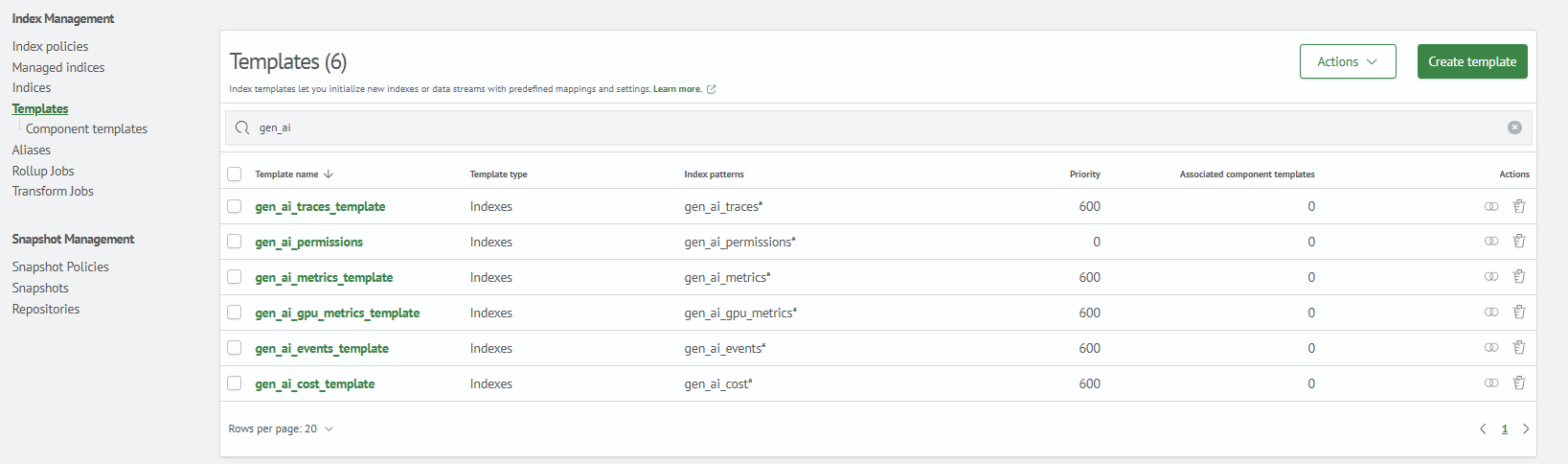

1. Index Templates

Verify that the index templates are available after deployment:

Main Menu - System Parameters - Index Management - Templates

2. Index Patterns

Verify that the index patterns are available after deployment:

Main Menu - System Parameters - Module Settings - OPENSEARCH - Index Patterns

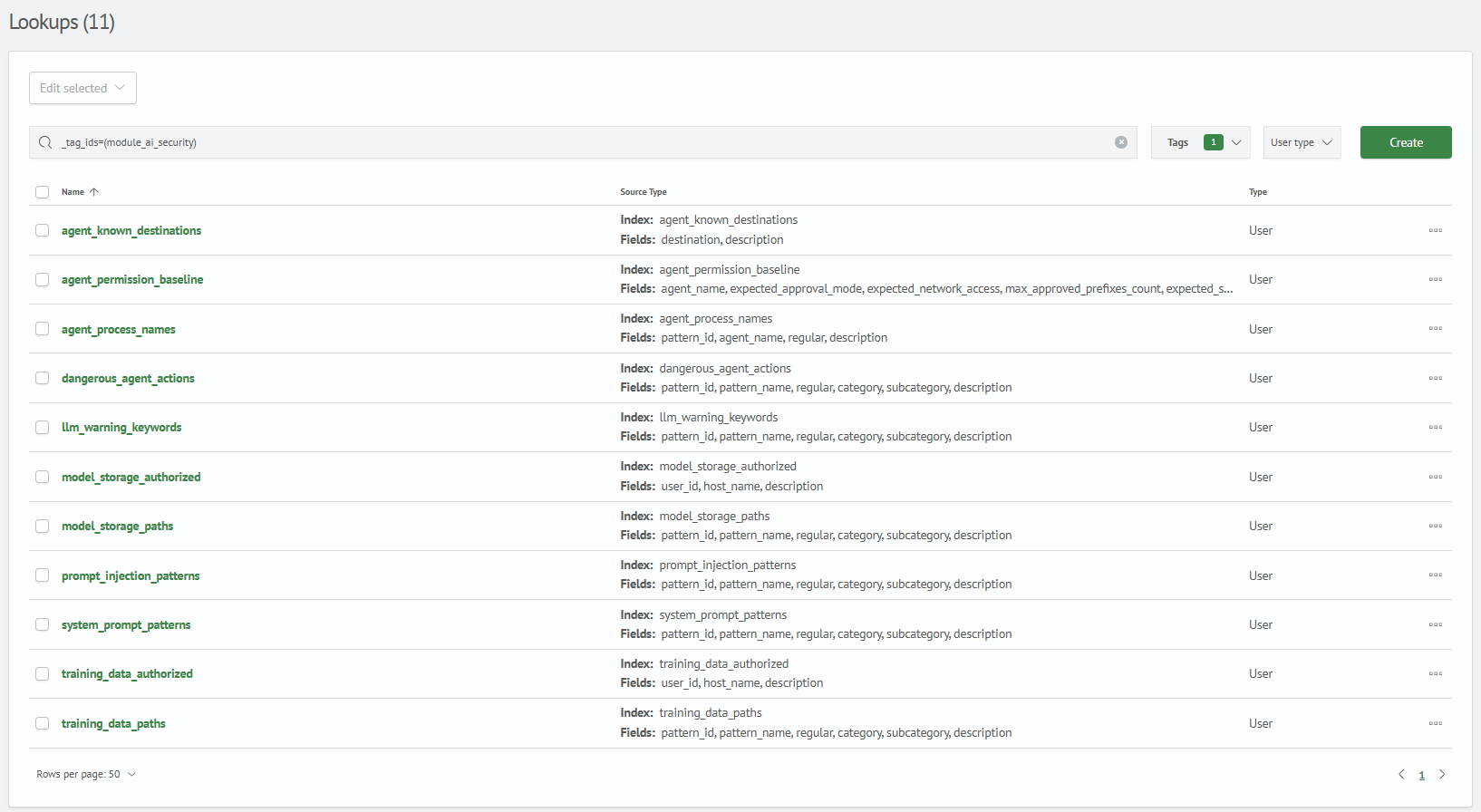

3. Lookups

Verify that the 11 module lookups are available after deployment:

Main Menu - Lookup Manager - Lookup List

Step 4. Register the Module Incident Type

After importing the AI Security content module, run apply_incident_types.py from the same ai_security_ko_maker utility. The script creates the Security Incident incident type and assigns it to the module jobs.

./bin/apply_incident_types.py \
  --sm_host <SMART_MONITOR_HOST> \
  --sm_api_port <SMART_MONITOR_API_PORT> \
  --sm_user <SMART_MONITOR_USER> \
  --sm_password '<SMART_MONITOR_PASSWORD>'

After the script completes, verify the following:

• the Security Incident incident type is available under Main Menu - Incident Manager - Incident Types
• the incident type is assigned to the module's scheduled jobs

Removing Objects

Run the rollback script to remove all deployed objects:

./bin/remove_ai_security.py \
  --sm_host <SMART_MONITOR_HOST> \
  --sm_api_port <SMART_MONITOR_API_PORT> \
  --sm_cluster_port <OPENSEARCH_PORT> \
  --sm_user <SMART_MONITOR_USER> \
  --sm_password '<SMART_MONITOR_PASSWORD>'
