Getting Started and Migration

Initialization

Before starting to use the Resource-Service Model, initialization must be performed. To do this, execute the following command in the Dev Tools console (Main Menu - Settings - Dev Tools):

GET _core/rsm/init

After successful initialization, you can proceed to creating a model.

Migration

You can easily migrate your existing model for use in the new version.

1. First, obtain the model identifier from the old version. You can get it from the URL of the old version's resource-service model page, for example: sm:5601/app/rsm/tree#?_q=(level:1,model_id:***model_2442d2d1-d8a4-11ef-9e45-25439e417cec***,timezone:'%2B03:00')
2. Execute the following command in the Dev Tools console (Main Menu - Settings - Dev Tools):

GET _core/rsm/migrate/<Model Identifier from step 1>

After successful initialization, you can proceed to reviewing models or the graph.

---

Configuring the Menu

Via the Graphical Interface

To view the functionality, you need to create elements in the navigation menu. To do this, open the menu Main Menu - Settings - Management - Main - Menu Settings. Click the Add Module button.

Fill in the fields for the module as follows:

Field Name	Content
Element Type	Group
System Name	rsm-v2
Title	RSM
Enable Display	Yes, the flag must be enabled

Inside the RSM module, click the Add Section button. To display ASM Tree and Layers, as well as to display the Layers, Metrics, and Services tables, fill in the fields as follows:

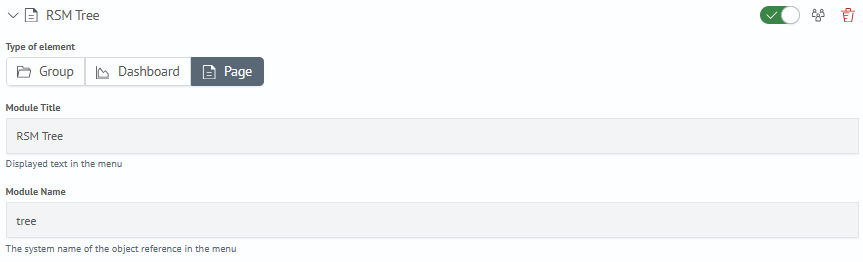

RSM Tree

Field Name	Content
Element Type	Page
System Name	tree
Title	RSM Tree
Enable Display	Yes, the flag must be enabled

Layers

Field Name	Content
Element Type	Page
System Name	layers
Title	Layers
Enable Display	Yes, the flag must be enabled

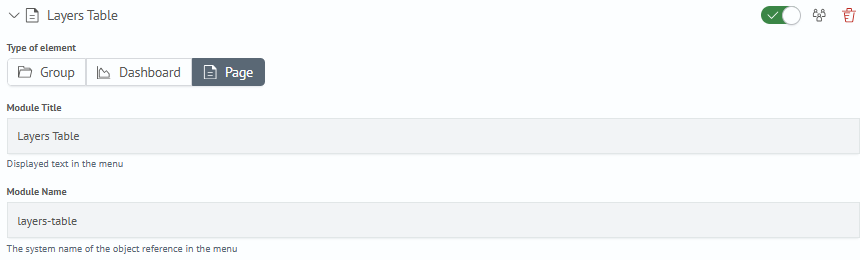

Layers Table

Field Name	Content
Element Type	Page
System Name	layers-table
Title	Layers Table
Enable Display	Yes, the flag must be enabled

Metrics Table

Field Name	Content
Element Type	Page
System Name	metric-table
Title	Metrics Table
Enable Display	Yes, the flag must be enabled

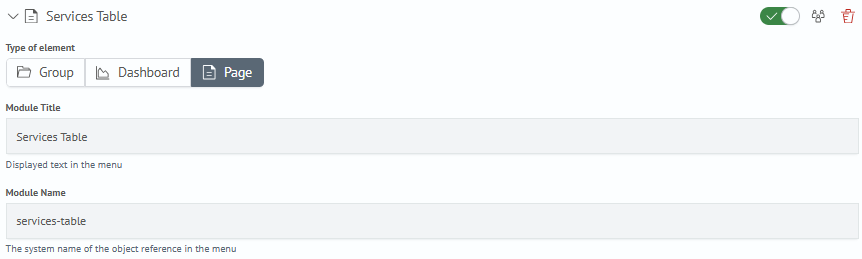

Services Table

Field Name	Content
Element Type	Page
System Name	services-table
Title	Services Table
Enable Display	Yes, the flag must be enabled

Click the Save Changes button. Configure permissions for user groups if necessary.

Via JSON

To do this, open the menu Main Menu - Settings - Management - Main - Menu Settings, go to the JSON structure tab, and add the following fragment to the top list, separated by a comma:

JSON

{
    "itemType": "group",
    "name": "rsm-v2",
    "_permissions": {
      "owner": "admin",
      "read": {
        "roles": [],
        "users": []
      },
      "write": {
        "roles": [],
        "users": []
      }
    },
    "id": "i166ef2a1-13ba-11f0-a668-6560e9eb14d5",
    "title":RSM",
    "enabled": true,
    "sections": [
      {
        "itemType": "page",
        "name": "tree",
        "_permissions": {
          "owner": "admin",
          "read": {
            "roles": [],
            "users": []
          },
          "write": {
            "roles": [],
            "users": []
          }
        },
        "id": "i46e0d571-13ba-11f0-a668-6560e9eb14d5",
        "title": "RSM Tree",
        "enabled": true
      },
      {
        "itemType": "page",
        "name": "layers",
        "_permissions": {
          "owner": "admin",
          "read": {
            "roles": [],
            "users": []
          },
          "write": {
            "roles": [],
            "users": []
          }
        },
        "id": "i5de13351-13ba-11f0-a668-6560e9eb14d5",
        "title": "Layers",
        "enabled": true
      },
      {
        "enabled": true,
        "id": "i8b1daaf1-a394-11f0-946d-91f16aff2435",
        "name": "layers-table",
        "title": "Layers Table",
        "itemType": "page"
      },
      {
        "enabled": true,
        "id": "i9c095531-a394-11f0-946d-91f16aff2435",
        "name": "metric-table",
        "title": "Metrics Table",
        "itemType": "page"
      },
      {
        "enabled": true,
        "id": "ia7435361-a394-11f0-946d-91f16aff2435",
        "name": "services-table",
        "title": "Services Table",
        "itemType": "page"
      }
    ]
}

Click the Save Changes button.
