Installing Configurations

The first stage is designed to automate the deployment and configuration of dependent objects for the Smart Code module. Configuration is performed using the make_smart_code.py utility. The utility is provided in the smart_code_ko_maker package and located in the bin directory. The utility performs the following tasks:

1. Deployment of knowledge objects (Smart Monitor entities)
2. Creation of index templates
3. Creation of indexes
4. Deployment of ISM (Index State Management) policies
5. Loading interface types from a CSV file

Requirements:

1. Python 3.x
2. Installed dependencies: requests, urllib3
3. Access to the Smart Monitor cluster with administrator credentials

---

Utility Structure

The script contains the following directory structure:

./
├── data/                                           # Main directory with configurations
│   ├── sm_*/                                       # Directories with `Smart Monitor` entities (starting with sm_)
│   ├── index_templates/                            # Index templates
│   ├── indexes/                                    # Index configurations
│   └── ism_policies/                               # Index state management policies
└── lookups/
    └── dim_continent_interface_iftype.csv          # CSV file with interface types for "Continent" family equipment

---

File Formats

warning

Index settings (indexes) and policies (ism_policies) are for demonstration purposes and must be adjusted to meet installation requirements regarding data rotation and replication configuration.

1. Smart Monitor Entities (in sm_* directories): JSON files with metadata in the _meta field and a unique identifier
2. Index Templates (index_templates):

   {
     "name": "template_name",
     "index_template": {
   	// template configuration
     }
   }

3. Indexes (indexes):

   {
     "index_name": {
   	// index configuration
     }
   }

4. ISM Policies (ism_policies):

   {
     "policy": {
   	"policy_id": "policy_name",
   	// remaining configuration
     }
   }

5. Interface Types (dim_continent_interface_iftype.csv): Current list of interface types for equipment from the Continent family

---

Installation Sequence

1. Running Configuration Installation

Installation is performed by running the make_smart_code.py:

python make_smart_code.py --sm_host <host> --sm_user <user> --sm_password <password> [--sm_port <port>]

Command line parameters:

Parameter	Required	Type	Default Value	Description
--sm_host	Yes	str	-	Smart Monitor host (one of the cluster nodes)
--sm_port	No	int	9200	Smart Monitor port
--sm_user	Yes	str	-	Username
--sm_password	Yes	str	-	User password

Example execution:

python make_smart_code.py --sm_host open-search-host-1.my_company.ru --sm_user admin --sm_password securepassword --sm_port 9200

2. Checking configuration application

1. In the Templates section: (Navigation Menu - System Settings - Index Management - Templates) the module templates are displayed:

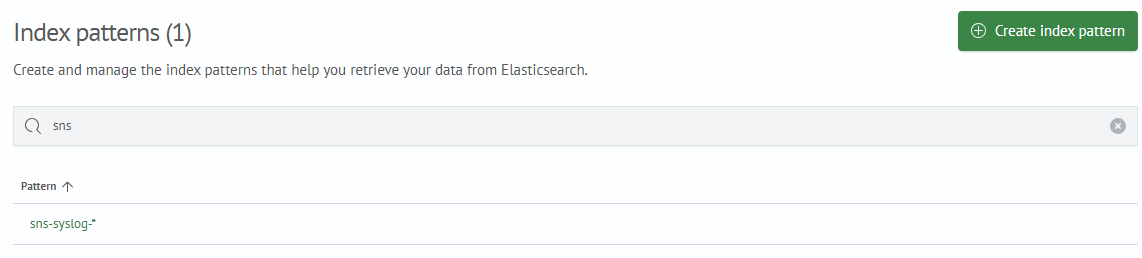

2. In the Index patterns section: (Navigation Menu - System Settings - Module Settings - OPENSEARCH - Index patterns) the module index patterns are displayed:

3. In the lookup list Lookup list: (Navigation Menu - Lookup Manager - Lookup list) the module lookups are displayed:

4. The dim_continent_interface_iftype lookup contains a list of interface types of equipment from the Continent family
