Metric

Description​

A metric allows tracking key service indicators based on collected data and using them to assess service health.

Appointment​

Metrics enable:

  • monitoring service indicators (both numerical and categorical)
  • monitoring service metrics with breakdown by service objects
  • analyzing changes in individual service indicators
  • fine-tune the matching of metric values to the state of the metric
  • fine-tune the effect of the state of individual metrics on the state of the service

Example of numerical and categorical service metrics.

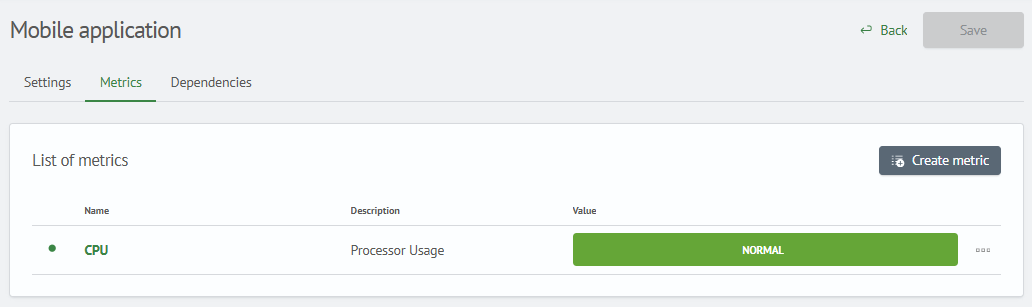

Metric configuration

info

The visualization graphs will display data for the time interval selected in the interval settings of the control panel on either the graph или layer pages.

Metric Management​

Management is possible in two ways:

  • via the service editing page
  • via the dedicated metric list page (metric table)

In the first case, you need to navigate to the service editing page.

Then open the Metrics tab to view the metric list.

Available metric operations:

  • create metric
  • enable/disable metric
  • edit metric
  • delete metric
warning

When clicking the Save button in the metric editing form modal, all changes are immediately saved to the server.

However, changes made on the service editing page won't be saved until you click Save on the service editing page itself.

Create a Metric​

To create a metric, click the Create Metric button, fill out the form in the opened modal window, and click Save.

Edit a Metric​

To edit a metric in the table, click on the metric name, a modal window with the metric editing form will open.

Enable/Disable a Metric​

note

The green or red dot to the left of the metric name indicates its current state: enabled or disabled.

To enable or disable the calculation of a metric's values, click on the "three dots" to open the context menu, then select disable or enable depending on its original state.

Management

Delete a Metric​

To delete a metric, click on the "three dots" next to the desired metric, then select Delete from the context menu and confirm the deletion.

Working with the Metric Table​

The second method allows you to manage metrics using a dedicated page. To do this, navigate to the Metric Table section in the main navigation menu. All main management aspects are similar to managing via the service editing page, with the key differences being:

  • deletion of multiple metrics at once
  • enabling/disabling multiple metrics
  • exporting/importing data in JSON format
  • search and data filtering by multiple parameters

Metric Table Page

The Metric Table page displays a complete list of all metrics existing in the system. It provides tools for searching, filtering, and managing metrics.

info

The table may contain metrics intended for analyzing the overall service health. They are highlighted in gray and marked with a "star" icon.

These metrics cannot be edited or deleted on the Metric Table page; editing is only available in the Service Table or on the Layers page.

Interface Overview​

The main table contains the following columns:

  • Green/red dot next to the name: displays the current metric status: enabled or disabled
  • Name: unique metric name
  • Description: brief explanation of what the metric measures
  • Service: service to which the metric is bound
  • Layer: ASM layer to which the metric belongs

Main Actions​

The top section of the page contains control elements:

  • Search: the Search... field allows instant filtering of the list by name or description
  • Filters: the "Layers" and "Services" dropdown lists allow displaying only metrics belonging to the selected categories
  • Create: (green button) opens a form to create a new metric
  • Export: downloads the current (or filtered) metric list from the system in JSON format
  • Import: allows uploading a metric list into the system from a file

Bulk Actions​

You can perform actions on multiple metrics simultaneously:

  1. Select metrics: mark one or more metrics using the checkboxes in the first column of the table
  2. Actions with selection: after selection, the buttons above the list become active:
    • Edit selected: (dropdown) allows applying bulk changes to selected metrics. The dropdown list contains the following items:
      • Enable / Disable: allows quickly changing the status of selected metrics (activate or deactivate)
    • Delete N metrics: (red button) initiates the deletion process for all selected metrics

Individual Actions​

The following options are available for managing each individual metric:

  • Editing: clicking on the metric name in the table opens the page for its detailed configuration and editing
  • Action menu (three dots): at the end of each row there is a menu that opens a list of quick actions:
    • Enable / Disable: allows quickly changing the metric status (activate or deactivate)
    • Delete: removes this metric from the system

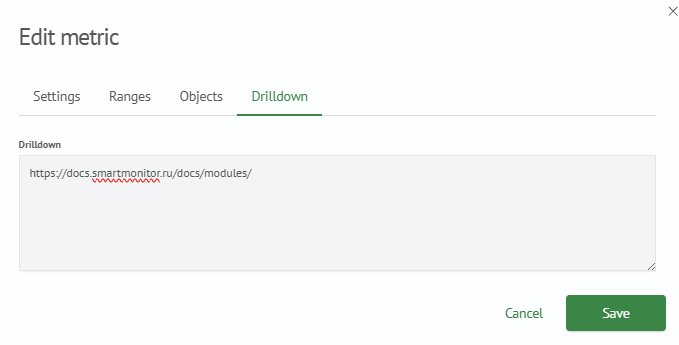

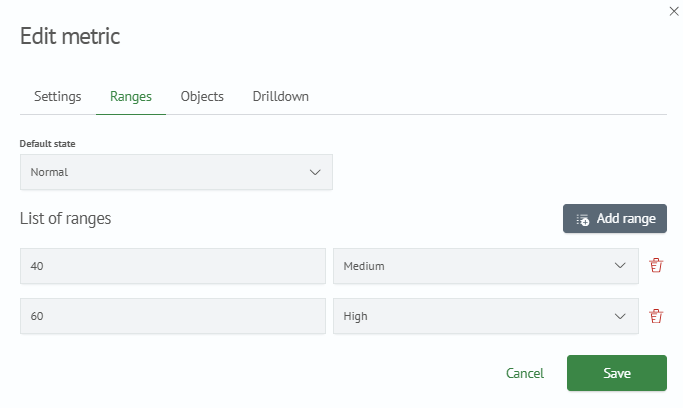

Metric Configuration Form Examples​

settings

settings

settings

settings
