Network
Description
The Network section of the module is intended to monitor the data relating to the network throughput capabilities.
Displayed Data
- Incoming data flow on the cluster over a specified time interval, in MB
- Number of errors on the incoming data flow on the cluster over a specified time interval
- Number of dropped packets on the incoming data flow on the cluster over a specified time interval
- Outgoing data flow on the cluster over a specified time interval, in MB
- Number of errors on the outgoing data flow on the cluster over a specified time interval
- Number of dropped packets on the outgoing data flow on the cluster over a specified time interval
- Chart of incoming data flow for each cluster node in MB
- Chart of error count on the incoming data flow for each cluster node
- Chart of dropped packet count on the incoming data flow for each cluster node
- Chart of outgoing data flow for each cluster node in MB
- Chart of error count on the outgoing data flow for each cluster node
- Chart of dropped packet count on the outgoing data flow for each cluster node
- Data flow information for each interface on each cluster node (incoming and outgoing data size in MB and packets)
Dashboard List
- Inbound Data Traffic per Interval, MB
- Inbound Data Traffic per Interval, errors
- Inbound Data Traffic per Interval, dropped packets
- Outbound Data Traffic per Interval, MB
- Outbound Data Traffic per Interval, errors
- Outbound Data Traffic per Interval, dropped packets
- Inbound Data Traffic per Node, MB
- Inbound Data Traffic per Node, errors
- Inbound Data Traffic per Node, dropped packets
- Outbound Data Traffic per Node, MB
- Outbound Data Traffic per Node, errors
- Outbound Data Traffic per Node, dropped packets

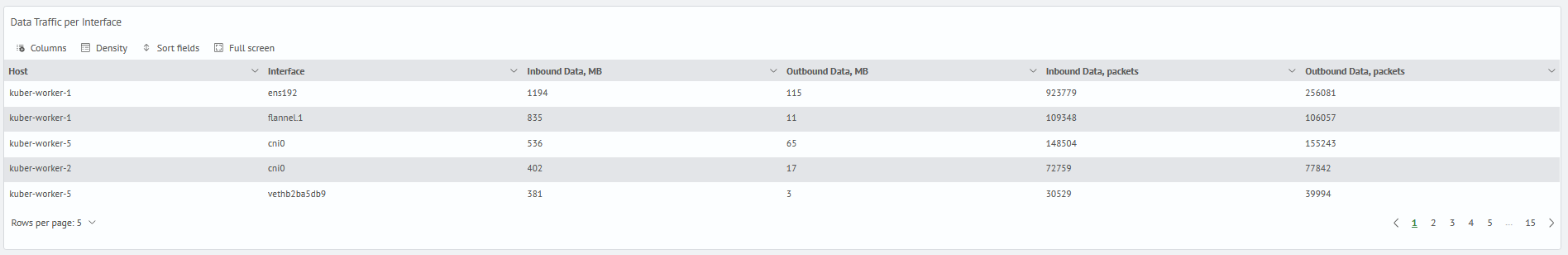

- Data Traffic per Interface
